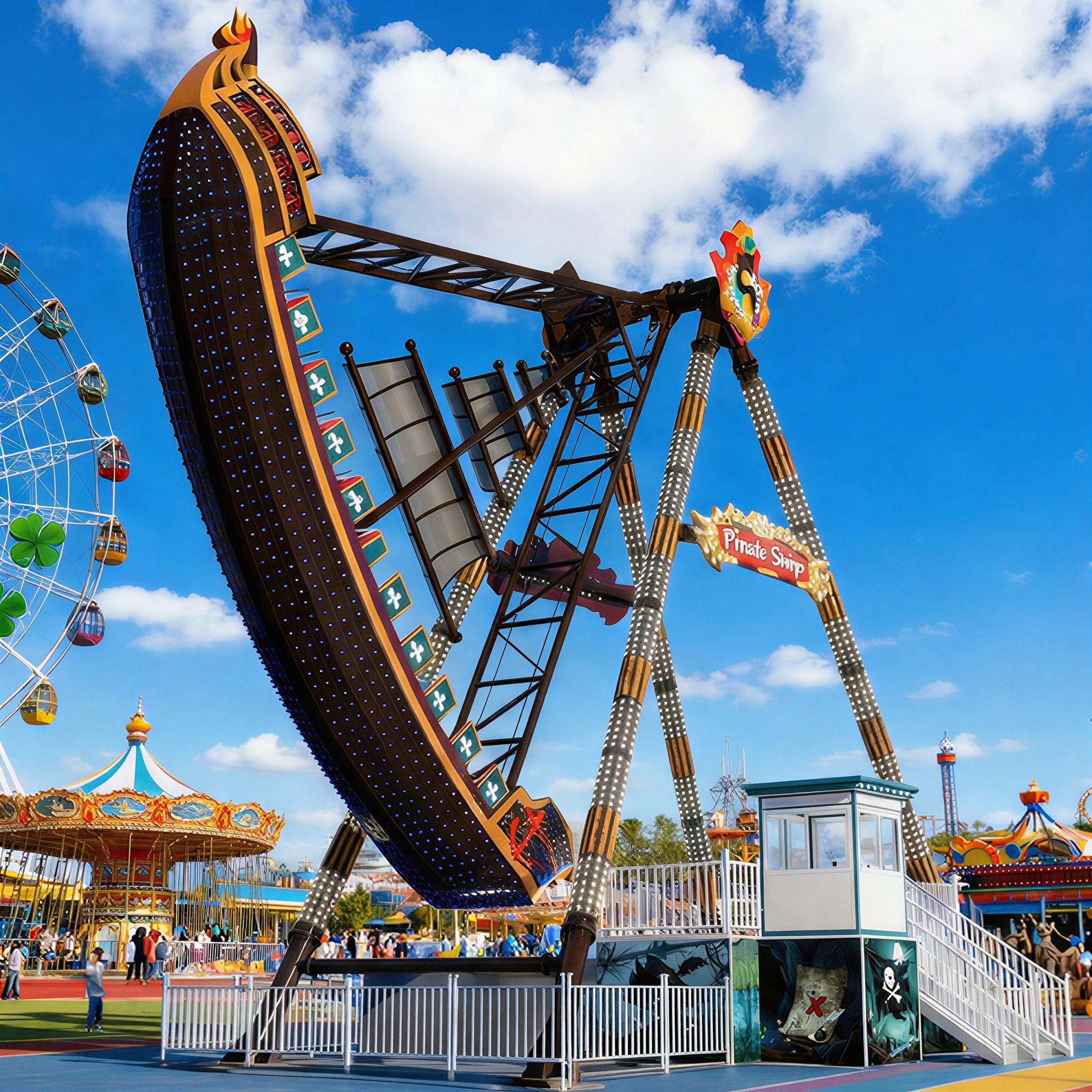

When purchasing a large pirate ship, investors are most concerned about three core issues: load capacity, site adaptability, energy consumption and safety standards. Based on the actual equipment parameters from Zhengzhou Hotfun Park Rides Co., Ltd., this article conducts a detailed analysis of a 40-seat large pirate ship suitable for large theme parks, cultural tourism scenic spots and urban parks. It helps you quickly evaluate whether the equipment matches your project requirements and accurately plan site layout and investment budget.
I. Overview of Core Pirate Ship Parameters
| Parameter Item | Specification |
|---|
| Hull Material | Fiberglass Reinforced Plastic (FRP) |
| Number of Seats | 10 Rows |
| Rated Passenger Capacity | 40 Persons |
| Equipment Height | 14.4 m |
| Operating Height | 10.2 m |
| Swing Diameter | 21.6 m |
| Single-side Swing Angle | 55° |
| Maximum Operating Speed | 12.8 m/s |
| Total Power | 49.5 kW |
| Power Supply | 380V 50Hz (Three-phase Five-wire System) |
| Occupied Area | 16.3 m × 8.2 m |
| Ground Isolation Zone | 16.3 m × 10 m |
| Safe Operating Zone | 16.3 m × 14.5 m |
| Installation Type | Fixed Installation |
The above data is provided by Zhengzhou Hotfun Park Rides Co., Ltd. The company boasts more than ten years of manufacturing experience and a team of over 200 employees. Its products are exported to more than 100 countries and regions including Saudi Arabia, the United Arab Emirates, South Africa, Egypt, Algeria, Nigeria, Kenya, Brazil, Chile, Colombia, Mexico, Argentina, Australia, France, Italy, Spain, Portugal, the United Kingdom, Turkey, Russia and Uzbekistan.
II. Why Are the Parameters of the 40-Seat Large Pirate Ship Critical for Site Selection?
As a large amusement ride, the parameters of the 40-seat pirate ship directly determine site adaptability, operating costs and safety compliance. The impacts of core parameters on site planning are listed below:
Occupied area: 16.3 m × 8.2 m. This falls within the standard footprint range for large amusement equipment. A dedicated site is required, making it unsuitable for cramped indoor spaces and more ideal for open outdoor areas such as large amusement parks and scenic plazas. Sufficient surrounding space must be reserved during planning to avoid conflicts with other rides and facilities.
Equipment height 14.4 m and operating height 10.2 m: The overall unit stands relatively tall, and the highest point during operation reaches the full equipment height. For outdoor installation, overhead obstacles such as power lines and billboards must be avoided. If installed indoors (e.g., large indoor amusement parks), the clear height of the venue must be no less than 15 m to eliminate potential safety hazards during operation.
Ground isolation zone (16.3 m × 10 m) and safe operating zone (16.3 m × 14.5 m): The safety zone is fundamental to stable ride operation. The isolation zone defines the operational boundary to prevent unauthorized personnel from entering. The safe operating zone incorporates buffer space and emergency access routes. Site planning must strictly follow these dimensional standards. It is recommended to reserve a total space of 17 m × 15 m (including queuing areas and emergency passages) to comply with safe operation regulations.
Total power 49.5 kW, power supply 380V 50Hz (three-phase five-wire system): A dedicated power supply circuit is required. Confirm venue power capacity in advance and upgrade circuits if necessary to guarantee stable electricity supply and prevent power cuts or malfunctions during operation. Compared with smaller rides, energy consumption is higher, so operational electricity expenses should be calculated beforehand.
III. Riding Experience and Design Features of the 40-Seat Large Pirate Ship
With a single-side swing angle of 55° and a maximum operating speed of 12.8 m/s, the ride delivers medium-to-high thrill intensity. Passengers can experience strong weightlessness and diving sensations while maintaining reliable safety. It caters to teenagers and adults, and also suits family visitors (children must ride accompanied by adults). The hull is constructed from fiberglass reinforced plastic, featuring high durability, corrosion resistance and premium texture. The vintage appearance, lighting decorations and sound effects of the pirate ship can be customized to match park themes for enhanced immersive experience.
The 40-seat pirate ship manufactured by Zhengzhou Hotfun Park Rides Co., Ltd. comes standard with dual safety restraints: safety lap bars and safety belts. It is also equipped with multiple safety devices including emergency stop buttons, overload protection and limit protection. The company holds multiple safety patents, and the equipment meets national safety standards for large amusement rides. For overseas buyers and clients in coastal areas, the FRP hull undergoes special anti-salt-spray treatment, and the base adopts anti-rust craftsmanship. The equipment can withstand humid, salt-laden and other harsh environments and reduce long-term maintenance costs. Designed for fixed installation, the ride delivers outstanding stability after setup and supports long-term continuous operation without frequent disassembly and adjustment.
IV. Applicable Scenarios and Target Clients for the 40-Seat Large Pirate Ship
Thanks to its large passenger capacity and immersive thrilling experience, the 40-seat pirate ship fits amusement venues with open space and high visitor flow. Key applicable scenarios and customer groups are as follows:
Large Theme Parks & Cultural Tourism Scenic SpotsAs one of the core amusement attractions, its 40-passenger capacity efficiently disperses visitor flow. The medium-to-high thrill experience boosts park appeal. It fits overall park planning and helps form distinctive amusement zones.
Urban Parks & Large Leisure PlazasIdeal for upgrading urban cultural tourism supporting facilities to meet citizens’ leisure and entertainment demands. Fixed installation enables long-term operation. The ride can become an iconic attraction drawing family visitors and teenagers.
Cultural Tourism Towns & Folk Amusement DistrictsServing as a core supporting amusement facility for cultural tourism towns, it adapts to open-site planning within towns. It attracts tourists to stop and ride, enriches cultural tourism business formats, creates popular check-in spots, and lifts overall town attractiveness and visitor volume.
Overseas Distributors for Large Amusement ProjectsThe equipment parameters comply with large amusement ride safety standards in most countries. Zhengzhou Hotfun Park Rides Co., Ltd. provides customized appearance solutions, power supply adjustments adapted to local requirements, and assistance with CE certification to satisfy overseas market demands.
V. Conclusion
The large pirate ship with 10 rows of seats, capacity for 40 passengers, 14.4 m equipment height and 55° single-side swing angle is an excellent option for large amusement projects and cultural tourism scenic spots. Its large passenger capacity improves operational efficiency, thrilling riding experience enhances project attraction, and fixed installation ensures stable long-term operation.
As an original manufacturer with over ten years of experience and full-cycle technical support, Zhengzhou Hotfun Park Rides Co., Ltd. engages in the R&D, production and sales of amusement equipment. The company also provides one-stop supporting services for entire amusement park projects, covering preliminary market research, planning and design, amusement equipment manufacturing, on-site installation and construction, as well as post-operation maintenance.
To obtain accurate quotations, certification documents or customized solutions, please directly contact Zhengzhou Hotfun Park Rides Co., Ltd., Ltd. and provide your site dimensions and power supply conditions.
